👋 Welcome to the climatrix Tutorial

This tutorial will walk you through some typical use cases showing how climatrix makes managing climate data easier.

We'll simulate sparse meteorological observations spread across Europe.

---

🛠️ Step A: Configure Access to CDS

Warning

If you already have a ~/.cdsapirc file, you can skip this step.

To configure access to the CDS (Climate Data Store), run:

cm dataset config cds

To configure CDS store.

📥 Step B: Download ERA5-Land Reanalysis Data

We'll use the ERA5-Land global reanalysis product. To download it, run:

cm dataset download era5-land --year 2018 --month 10 --day 12 --target ./era5-land.nc

Note

Downloading data can take a few minutes—please be patient.

📂 Step C: Open the Dataset

We’ll open the dataset using the climatrix accessor:

import xarray as xr
import climatrix as cm # (1)!

dset = xr.open_dataset("./era5-land.nc").cm

1. Even though we're not using climatrix directly, we must import it to enable the climatrix xarray accessor to available.

🌍 Step D: Shift to Signed Longitude Convention

ERA5-Land uses the positive longitude convention (\(\lambda \in [0, 360]\)). To make it easier to work with Europe, we’ll convert it to the signed convention (\(\lambda \in [-180, 180]\)).

dset = dset.to_signed_longitude()

Warning

Changing longitude convention on a large dataset can be time and memory intensive.

🌐 Step E: Subset to Europe

We'll now extract a region covering Europe:

europe = dset.subset(north=71, south=36, west=-24, east=35)

⏱️ Step F: Select a Single Time Instant

Note

cliamtrix currently doesn’t support plotting dynamic datasets. Let’s select a single timestamp.

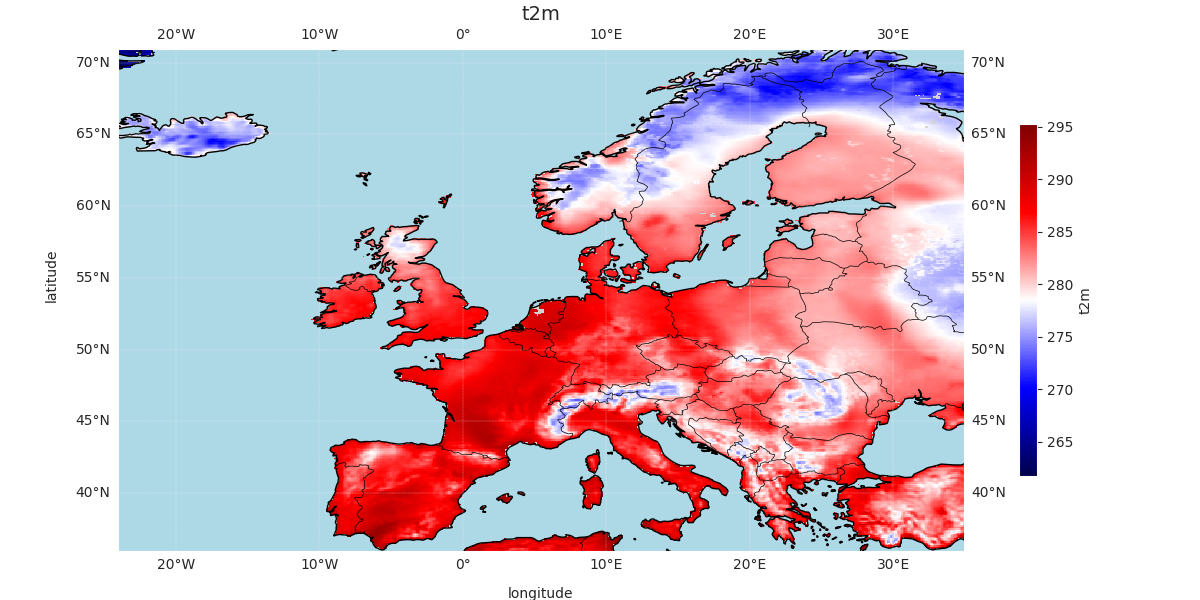

To select a single time instant, let's use:

europe = europe.time("2018-10-12T04:00:00")
europe.plot()

Tip

You can also pass Python datetime object to the time method.

🎯 Step G: Sample Data Around Warsaw

We'll create a sparse sample of data points around Warsaw, using a normal distribution:

WARSAW = (21.017532, 52.237049)
sparse = europe.sample_normal(number=5_00, center_point=WARSAW, sigma=1.5)

Tip

You can use the portion argument instead of number to sample a fraction of the dataset (e.g., 50%).

🖼️ Step H: Plot the Sparse Observations

Now we can plot the output:

sparse.plot()

Warning

Plotting requires downloading coastline and border data, so it may take longer the first time.

🏗️ Step H.1: Creating Custom Domains (Optional)

You can create custom domains with multiple axis types using the builder pattern. This is especially useful when working with vertical levels or custom time series:

from climatrix.dataset.domain import Domain

# Create a domain with vertical levels around Warsaw
custom_domain = (Domain.from_axes()
                 .vertical(pressure=[1000, 850, 700, 500])  # (1)!
                 .lat(latitude=[51.5, 52.0, 52.5])
                 .lon(longitude=[20.5, 21.0, 21.5])
                 .time(time=['2018-10-12T00:00', '2018-10-12T06:00'])
                 .sparse())  # (2)!

print(f"Custom domain size: {custom_domain.size}")
print(f"Has vertical axis: {custom_domain.has_axis('vertical')}")

1. Define pressure levels as the vertical coordinate
2. Create as sparse domain - vertical and time are independent dimensions

Domain Builder Features

The from_axes() builder supports:

• Vertical axes: pressure, depth, level, etc.
• Time axes: Various time coordinate names
• Custom names: Any parameter name for each axis type
• Flexible inputs: Slices, lists, or numpy arrays

🔁 Step I: Reconstruct Using IDW

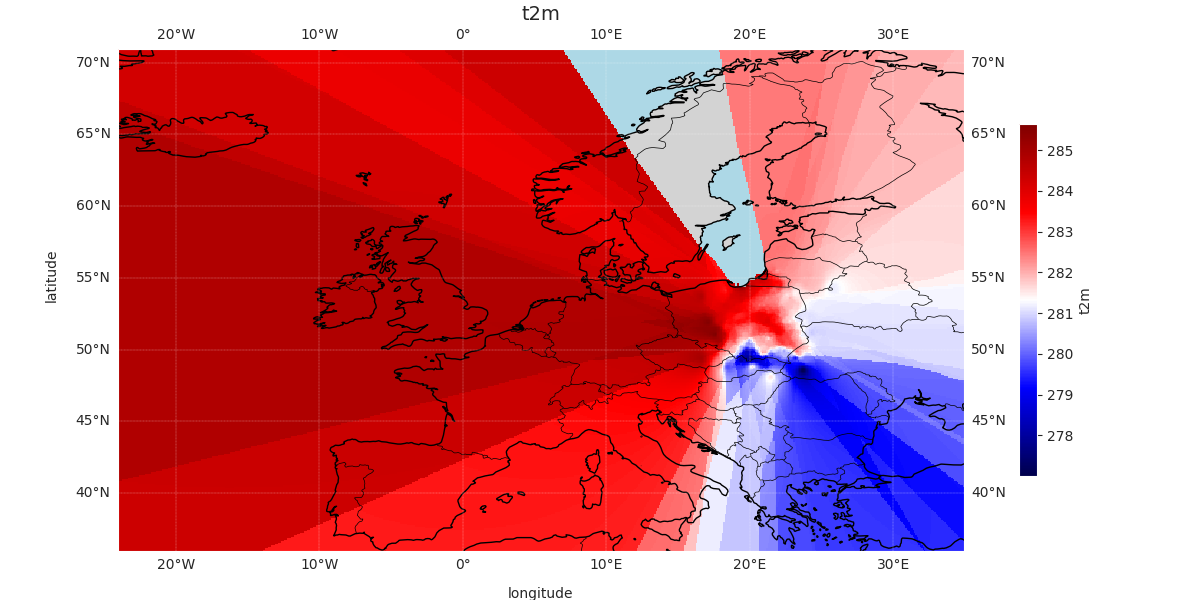

We’ll reconstruct a dense field from the sparse data using Inverse Distance Weighting (IDW):

idw = sparse.reconstruct(europe.domain, method="idw") # (1)!
idw.plot()

1. We want to reconstruct data for all Europe (europe.domain).

Note

Note that we reconstructed the data for the entire Europe. Those visible artifacts are the result of too few samples concentrated around Warsaw. They are not representative for the entire Europe.

📊 Step J: Compare with Original Data

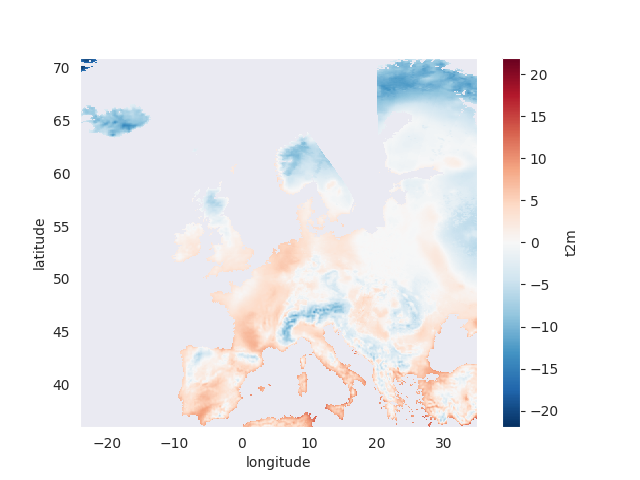

We'll use Comparison object to visualize the differences.

import matplotlib.pyplot as plt # (1)!

cmp = cm.Comparison(europe, idw)
cmp.plot_diff()
cmp.plot_signed_diff_hist()

plt.show()

1. We explicitly import matplotlib to be able to run plt.show() and display figures.

🎯 Step K: Optimize Hyperparameters

To improve reconstruction quality, let's optimize the IDW hyperparameters. We'll split our sparse data for training and validation:

from climatrix.optim import HParamFinder

# Create training and validation datasets
train_sparse = europe.sample_normal(number=300, center_point=WARSAW, sigma=1.5) # (1)!
val_sparse = europe.sample_normal(number=200, center_point=WARSAW, sigma=1.5)   # (2)!

# Find optimal hyperparameters
finder = HParamFinder(train_sparse, val_sparse, method="idw", n_iters=20) # (3)!
result = finder.optimize()

print(f"Best parameters: {result['best_params']}")
print(f"Best MAE score: {result['best_score']}")

1. Training data - used to fit the hyperparameter optimization
2. Validation data - used to evaluate parameter combinations
3. Using fewer iterations for this tutorial example

🚀 Step L: Apply Optimized Parameters

Now let's reconstruct using the optimized parameters:

# Reconstruct with optimized parameters
optimized_idw = sparse.reconstruct(
    europe.domain,
    method="idw",
    **result['best_params'] # (1)!
)

# Compare optimized vs default reconstruction
optimized_cmp = cm.Comparison(europe, optimized_idw)
default_cmp = cm.Comparison(europe, idw)

print(f"Default IDW RMSE: {default_cmp.compute_rmse():.4f}")
print(f"Optimized IDW RMSE: {optimized_cmp.compute_rmse():.4f}")

optimized_idw.plot(title="Optimized IDW Reconstruction")

1. Apply the best parameters found by the optimizer

Note

For hyperparameter optimization, make sure to install climatrix with: pip install climatrix[optim]

🌍 Step M: Interactive plotting

You can interactively plot the resulting dataset. Just run

cm.plot.Plot(dataset=cm_ds).show(port=5000)

That will run locally the server and enables you to conveniently explore the dataset via web browser.

Tip

If the preview does not open, choose your faviourite web browser and open [http://localhost:5000/](http://localhost:5000/) if you selected port 5000.

Note

For interactive plotting, make sure to install climatrix with: pip install climatrix[plot]
